Challenger Geomatics delivers high quality orthophotos and vector maps to a range of clients and industries.

If you would like to order any of our maps or have questions regarding our products or areas that you would like to see done please contact us.

An orthophoto is an aerial photograph geometrically corrected such that the scale is uniform. Unlike an uncorrected aerial photograph, an orthophotograph can be used to measure true distances, because it is an accurate representation of the earth’s surface, having been adjusted for topographic relief, lens distortion, and camera tilt.

Our vector maps are compiled using the most current survey data available. The maps are printed in colour on high resolution ink jet plotters with a satin finish, laminate prints are also available. Come back soon as we will be updating our plans and adding new products frequently.

Challenger is also a Digital Globe certified reseller and can service our clients with their geospatial products and services at a discounted rate.

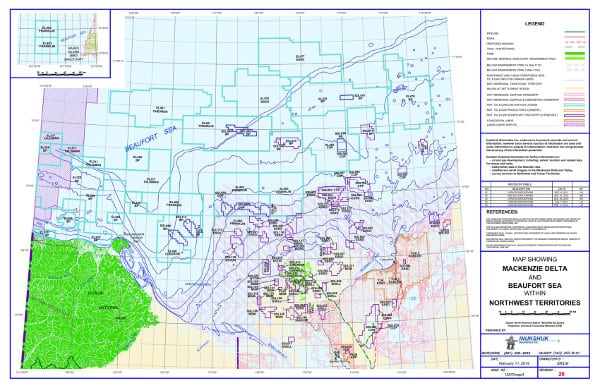

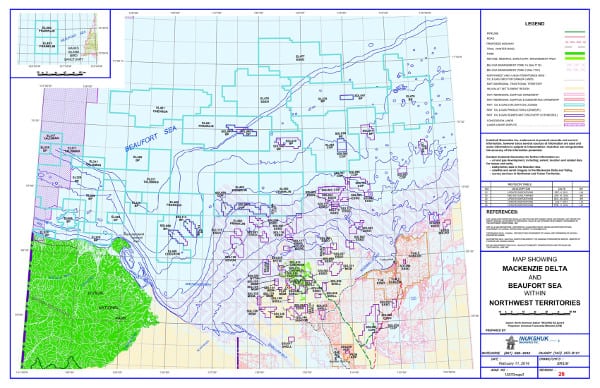

Mackenzie Delta and Beaufort Sea Reference Map (2014)

11″ X 17″ – $10

Showing Oil & Gas Dispositions (Exploration, Production & Significant Discovery Licenses) in the MacKenzie Delta & Beaufort Sea NWT (one side) and Mid-Mackenzie Valley NWT & Eagle Plains Yukon (other side). These maps also show Aboriginal Traditional Territories/Settlements & Aboriginal Surface/Sub-Surface Ownership.

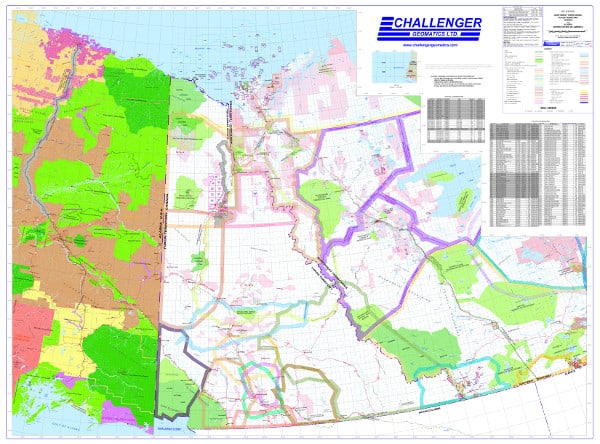

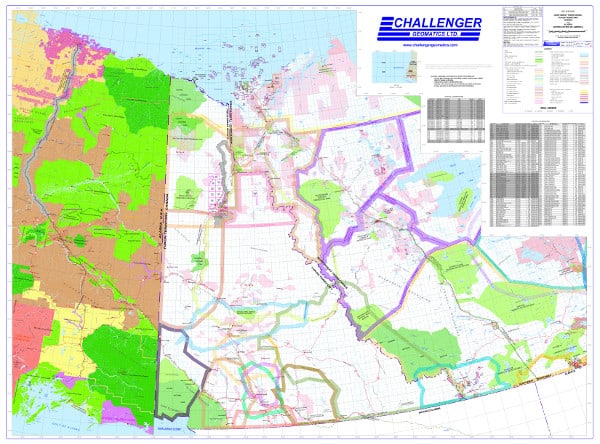

NWT and Yukon Canada and Alaska USA (2014)

72″ X 54″ – $400

Showing Oil & Gas Dispositions (Exploration, Production & Significant Discovery Licenses), Aboriginal Traditional Territories/Settlements & Aboriginal Surface/Sub-Surface Ownership, Oil & Gas Wells, Strike Area Names, Parks & Protected Areas.

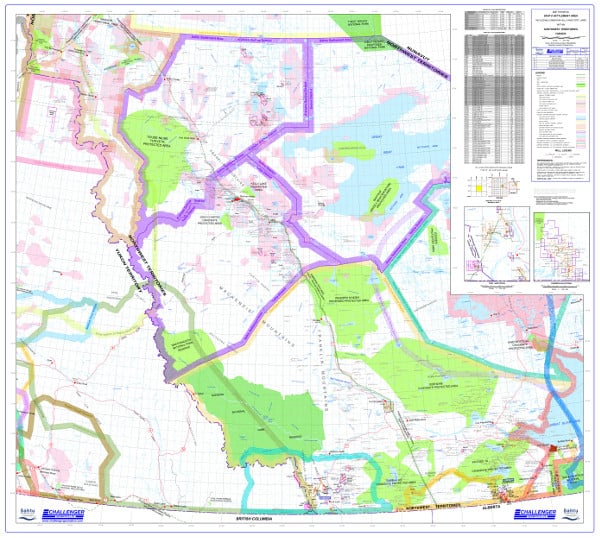

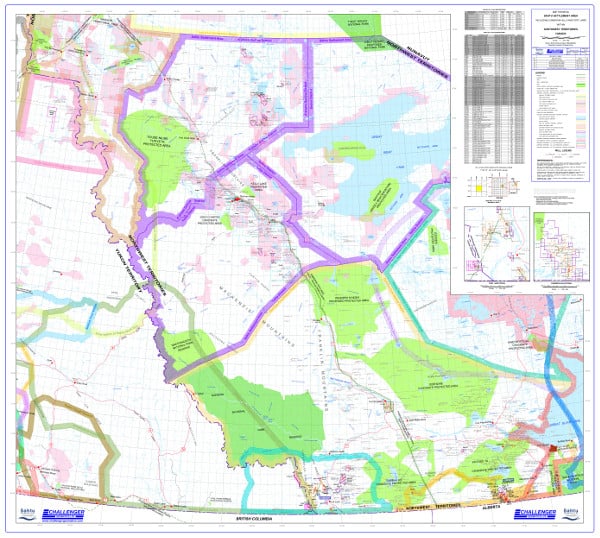

Sahtu Settlement Area (2014)

72″ X 54″ – $400

Including Cameron Hills and Fort Liard and showing Oil & Gas Dispositions (Exploration, Production & Significant Discovery Licenses), Aboriginal Traditional Territories/Settlements & Aboriginal Surface/Sub-Surface Ownership, Oil & Gas Wells, Strike Area Names, Parks & Protected Areas.

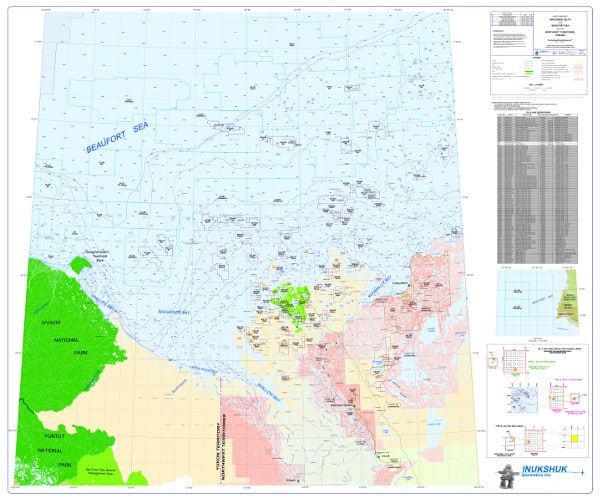

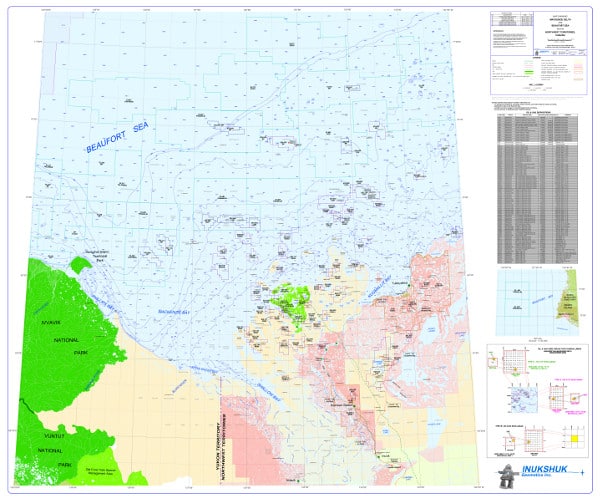

Mackenzie Delta and Beaufort Sea (2014)

72″ X 60″ – $400

Showing Oil & Gas Dispositions (Exploration, Production & Significant Discovery Licenses), Aboriginal Traditional Territories/Settlements & Aboriginal Surface/Sub-Surface Ownership, Oil & Gas Wells, Strike Area Names, Parks & Protected Areas, Beluga Management Zones, and Water Depths / Bathymetric Contours.

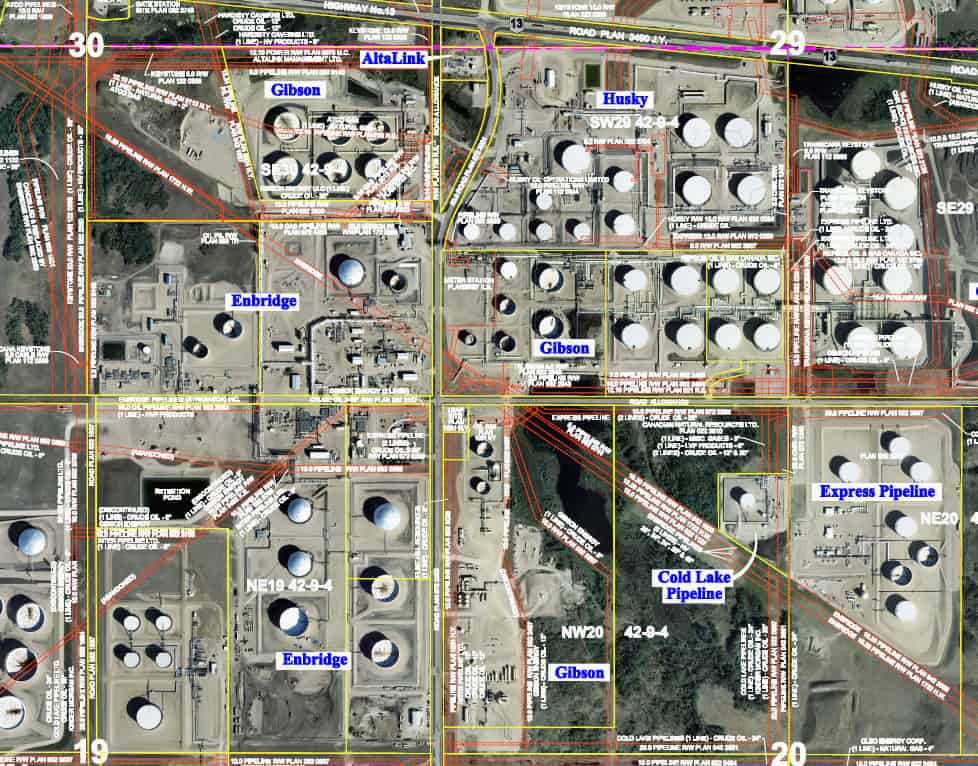

Hardisty Photo Mosaic (2017)

29″ X 40″ – $225

48″ X 42″ – $225

The Hardisty (Alta) Terminal Composite and Vicinity Ownership Map is current to September 2017. The Hardisty Mosaic was compiled using Land Titles Information, Provincial Parcel Mapping and Pipe Information was obtained using the Abadata Database. The mosaic is available with contours which were derived from provincial digital elevation models. Mosaic is rectified with a pixel resolution of 30 cm.

1 : 5000 – Coverage: Sec’s. 19, 20, 29, 30 and Part of Sec’s. 31 & 32, Twp. 42, Rge. 9, W. 4M.

1 : 7500 – Covers Tank and Rail terminals.

This map is plotted on a high quality photo paper with a satin finish.

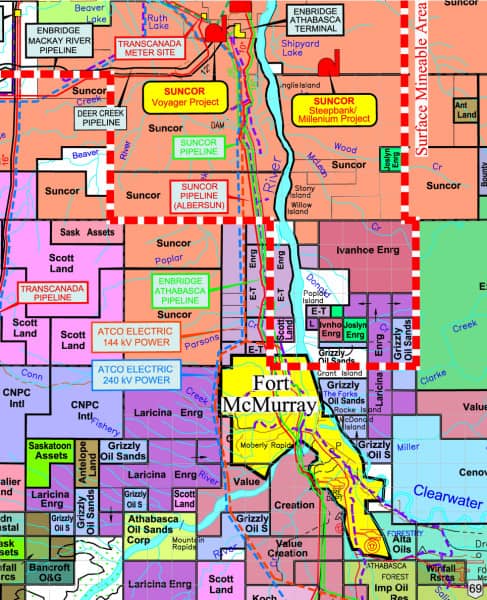

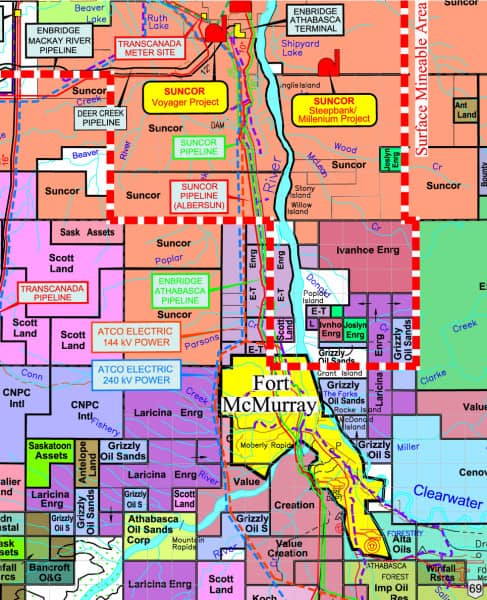

Athabasca Oil Sands Lease Map (2014)

42″ X 63″ – $300

41″ X 51″ – $300

Alberta Oil Sands Projects Lease Area Map showing Oils Sands Lease Areas, Major Pipelines, Major Power Lines & Oil Sands Plant Sites within the Athabasca Area. This map is available in the following scales:

1 : 200 000 – Coverage: Twps. 72-103, Rges. 1-20, W.4M.
1 : 250 000 – Coverage: Twps. 72-103, Rges. 1-25, W.4M.

This map is plotted on a high quality photo paper with a satin finish.

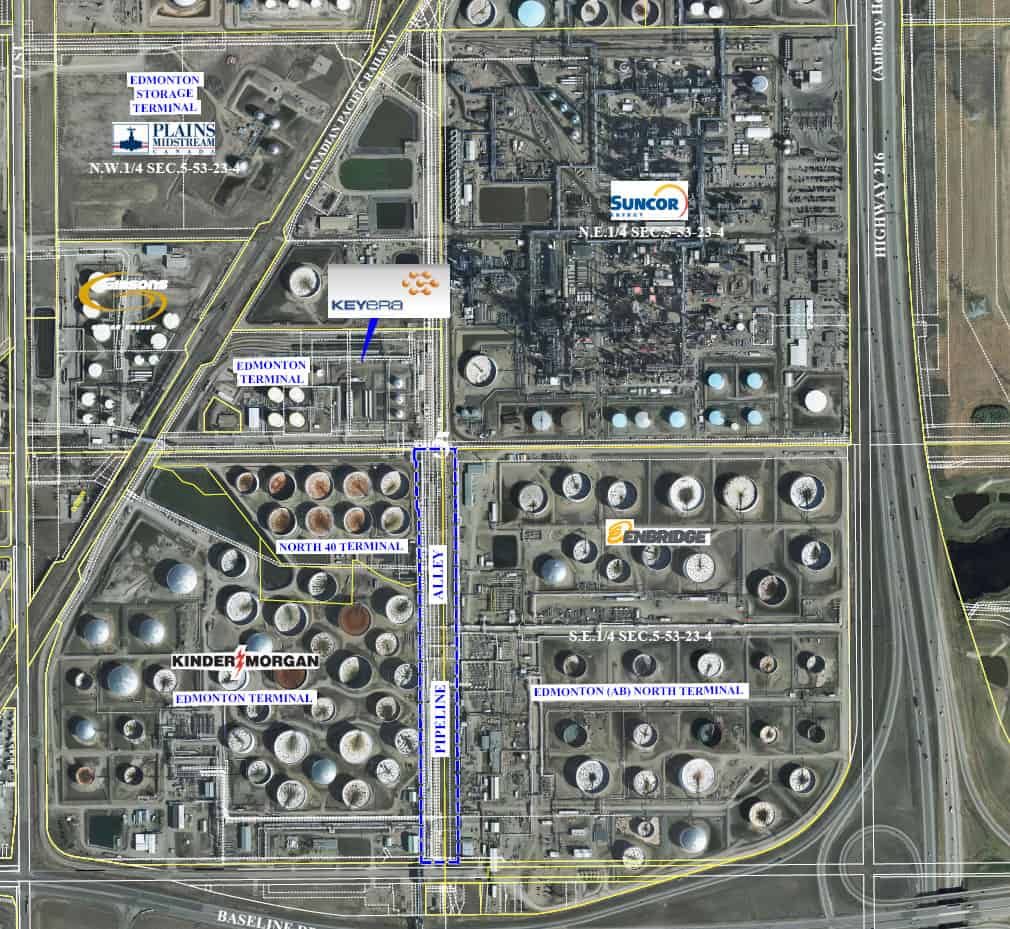

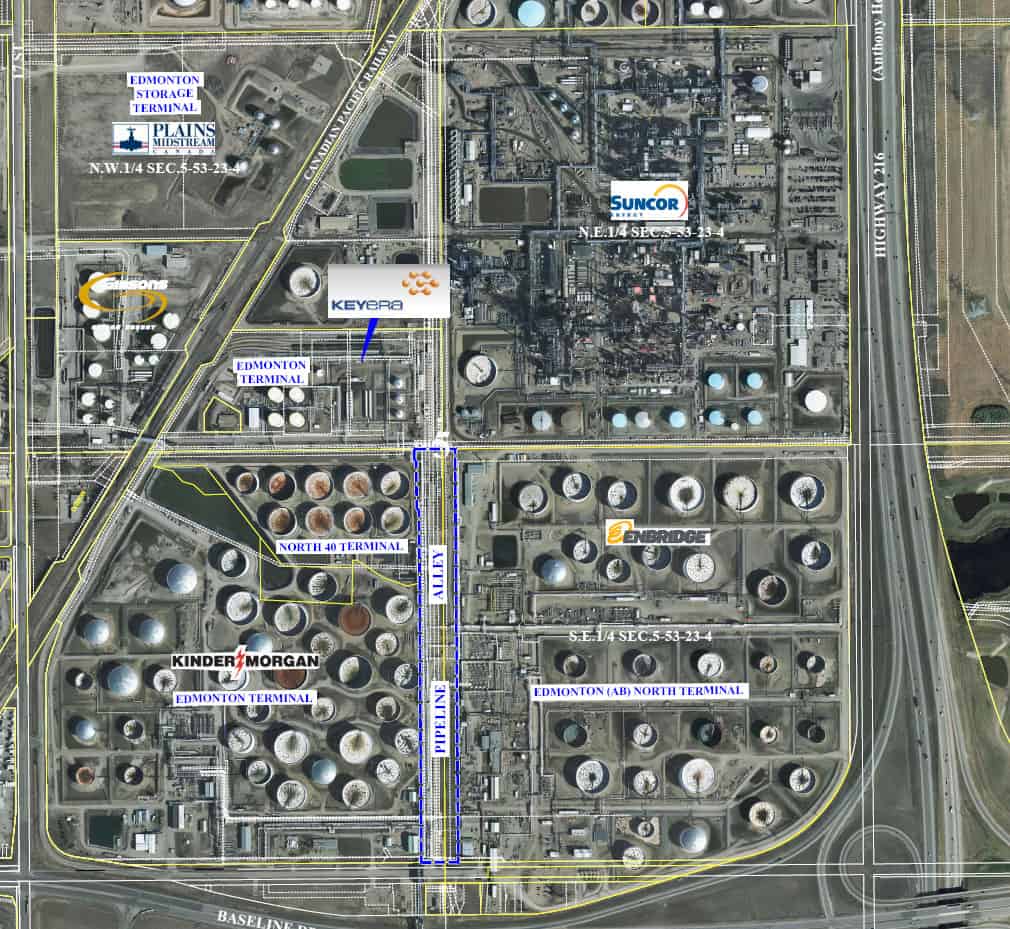

Edmonton Terminal Lease Map (2018)

36″ X 68″ – $250

The Edmonton Terminal Composite and Vicinity ownership Orthophoto Map was flown May 2018 at low altitude to produce 5cm pixel resolution. The mosaic was compiled using Provincial Parcel Mapping, City of Edmonton bases and Strathcona County Land Ownership maps.

The 1:5000 map covers 4.5 miles N/S and 2.5 miles E/W centered around baseline road and 17St.

Various custom maps at scales up to 1:1000 have been developed for particular facility owners in this area.

The map is plotted on high quality photo paper and is available in satin or gloss lamination.



Order Maps

Order one of these map products or tell us a little more about your mapping project (location details, scaling, variables etc.) and we will follow up with you to provide pricing and answer any questions.

Request a Quote
